مشخصات کالا
| مشخصات پردازنده | ||
|---|---|---|
| سوکت پردازنده | 1150 | |
| پشتیبانی از |
Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
|
| Chipset | Intel® Z97 | |
| مشخصات حافظه رم | ||
| پیکر بندی حافظه رم | 2 کاناله | |
| حداکثر ظرفیت پشتیبانی | 32 گیگابایت | |
| تعداد اسلات | 4 | |
| نوع حافظه | DDR3 | |
| گرافیک | ||
| Maximum shared memory | 512 مگابایت | |
| پشتیبانی چند کارت گرافیک |
Multi-VGA output support : HDMI/DisplayPort /Mini DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz - Supports Mini DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz |
|
| GPU | ||
| پشتیبانی از تکنولوژی |

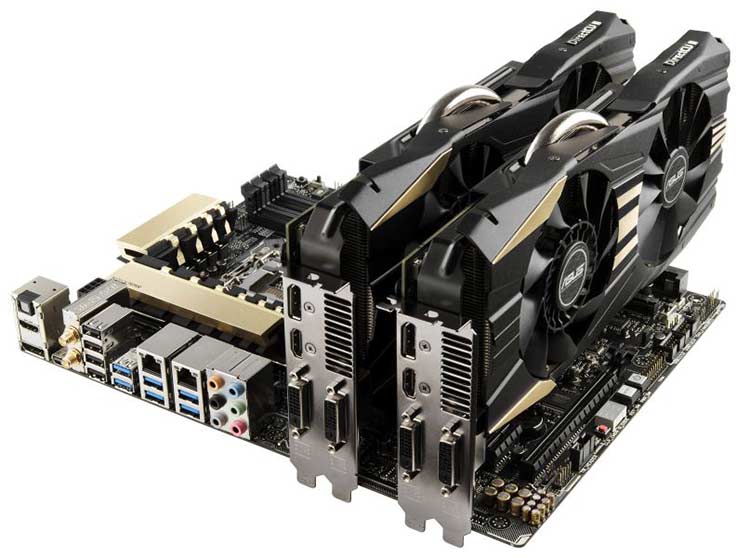

Supports NVIDIA® Quad-GPU SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology |
|
| اسلات های PCI | ||
| PCI Express x16 | 3 | |
| PCI Express x1 | 4 | |
| توضیحات |
2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 2.0 x16 (max at x4 mode) *1 4 x PCIe 2.0 x1 |
|
| رابط ذخیره سازی | ||
| رابط SATA |
1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*2 4 x SATA 6Gb/s port(s), gray |
|
| پیکربندی حالت RAID | Support Raid 0, 1, 5, 10 | |
| امکانات ارتباطی | ||
| کنترلر شبکه |
Intel® I218V, 1 x Gigabit LAN, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Intel® I211-AT, 1 x Gigabit LAN Controller(s) |
|
| صدا | ||
| تراشه کارت صدا | Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2 | |
| تعداد کانال ها | 8 | |
| پشتیبانی از | Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking | |
| پورت S/PDIF | ||
| سایر ویژگی ها |
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound - DTS Ultra PC II - DTS Connect - Optical S/PDIF out port(s) at back panel - BD Audio Layer Content Protection - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Audio amplifier: Provides the highest-quality sound for headphone and speakers - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - Top notch audio sensation delivers according to the audio configuration - EMI protection cover to prevent electrical noise to affect the amplifier quality |
|
| پورت های USB | ||
| تعداد پورتUSB2.0 پنل پشتی | 4 | |
| تعداد پورت USB3.0 پنل پشتی | 4 | |
| تعداد پورت USB 2.0 داخلی | 4 | |
| پورت ها | ||
| پورت های پنل پشتی |

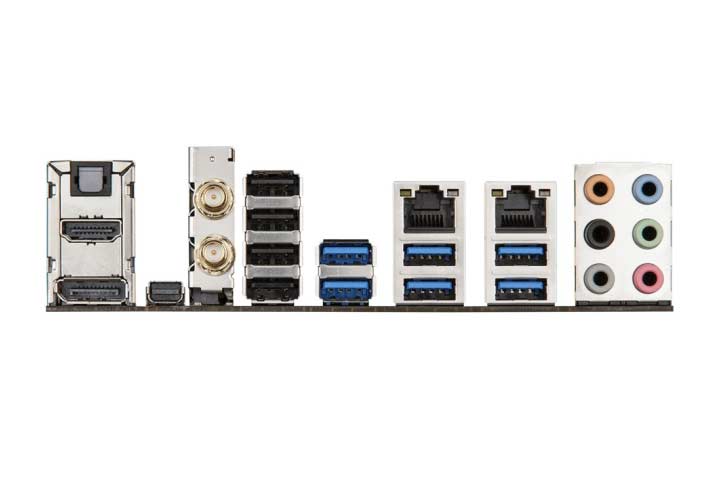

1 x DisplayPort 1 x HDMI 2 x LAN (RJ45) port(s) 6 x USB 3.0 (blue) 4 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x Mini DisplayPort(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0 |
|
| پورت های داخلی |
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x SATA Express connector: black, 1 x M.2 Socket 3 for M Key, type 2260/2280 devices 1 x TPM header 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 4 x Chassis Fan connector(s) (4 x 4 -pin) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x USB BIOS Flashback button(s) |
|
| سایر کانکتورهای مهم |

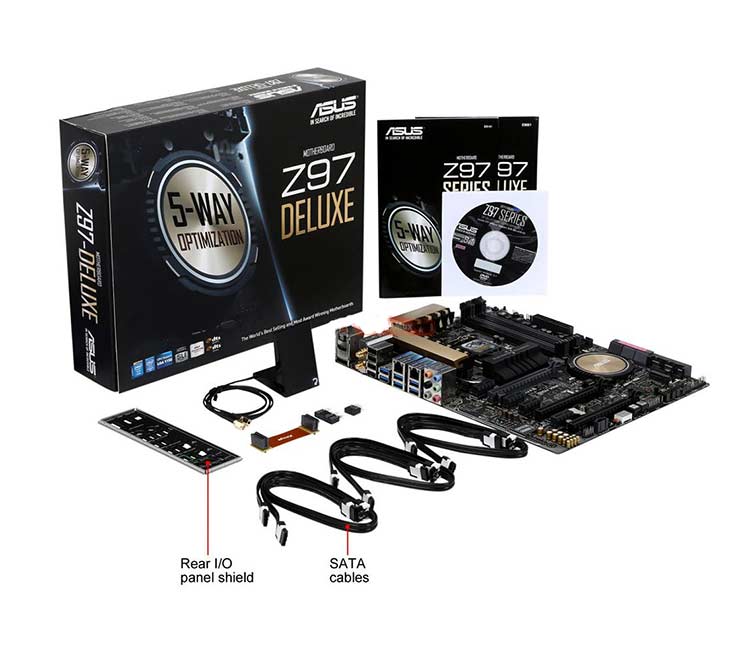

6 x SATA 6Gb/s cable(s) 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x SLI bridge(s) |
|
